Example of event selection by date in MasterSCADA journal

Question:
How to filter event records for a user-specified interval in the 'Archive Journal' component?

Answer:

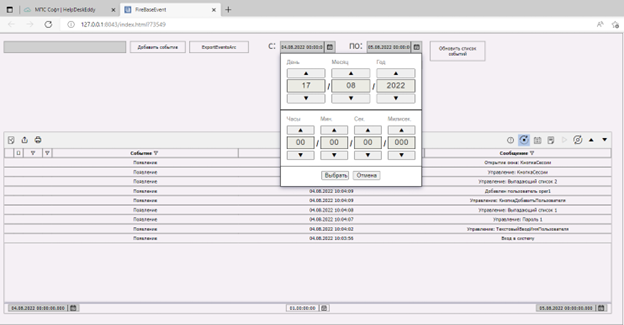

To filter records, you need to set the start date and time of the record selection period (see 'From:').


Implementation

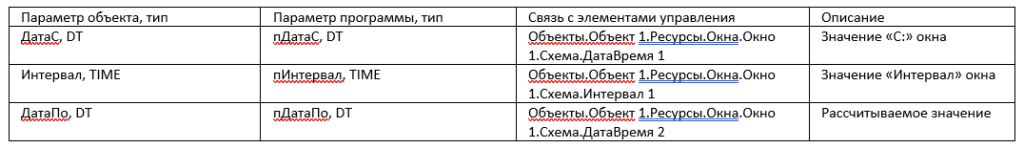

Determining the end date and time of the period is performed in the 'SetDateEnd' program. The values of the program's input parameters are passed (returned) to (from) the program from the object's parameters:


The values prepared by the program are passed to the 'Archive Journal' component


Attention! The 'Time Filter' property of the 'Archive Journal' control must be set to 'True'.

MasterSCADA 4D calculates the period (DateTo - Interval) and records matching the criterion are displayed in the 'Archive Log' component.
